Navigating a pitch-black forest trail pushes your adrenaline to the limit. Stock headlights simply lack the optical punch to pierce the darkness ahead. Driving off-road at night demands proper auxiliary lighting. Choosing the right equipment often feels like a guessing game for many enthusiasts. A massive setup can trigger mounting failures, unbearable wind howl, or severe electrical drain. Conversely, undersized units leave you blind to upcoming trail hazards.
In this technical guide, we break down how to evaluate your rig's mechanical constraints and select the exact dimensions for nighttime trail safety.
Size Dictates Placement: Compact cube lights excel at ditch and A-pillar mounts. Massive 50-inch models belong strictly on roof racks.
Versatility Matters Most: Mid-sized configurations offer a balanced combination of illumination output and flexible mounting options for front bumpers and grilles.
Profile Impacts Aerodynamics: Sleeker profiles cut wind resistance in tight spaces. Dual-row configurations maximize total light volume for slow-speed rock crawling.
Match the Equipment to the Machine: Precise measurement of specific mounting locations and an objective evaluation of vehicle electrical capacity are non-negotiable steps before purchasing.
Outfitting a rig for trail navigation goes far beyond cosmetics. The physical footprint of your lighting equipment directly influences structural integrity, aerodynamic drag, and electrical stability.
Aesthetics and Fitment
Size dictates visual integration and physical clearance. A bulky fixture bolted to a sleek front bumper ruins approach angles. It leaves the lens vulnerable to rock strikes and heavy brush. Placing a tiny unit on a massive roof rack looks disproportionate and fails to project widespread illumination across open terrain.
Aerodynamics and Wind Noise
Physical dimensions correlate directly with aerodynamic drag. Large roof-mounted systems disrupt the smooth airflow traveling over the windshield. This disruption creates a noticeable whistling sound and low-frequency resonance at highway speeds. Larger surface areas also generate significant wind resistance. Over time, this causes vibration fatigue on mounting brackets. Tucking a smaller unit behind the grille or matching the length strictly to your windshield width mitigates these aerodynamic penalties entirely.
Electrical Draw and Alternator Load
Physical size generally dictates the internal diode count. More diodes demand more electrical power. Massive units draw heavy amperage. Before bolting on a giant lighting system, you must objectively evaluate your vehicle's electrical infrastructure. Exceeding the spare capacity of your factory alternator risks draining the battery and causing premature failure of critical electrical components.

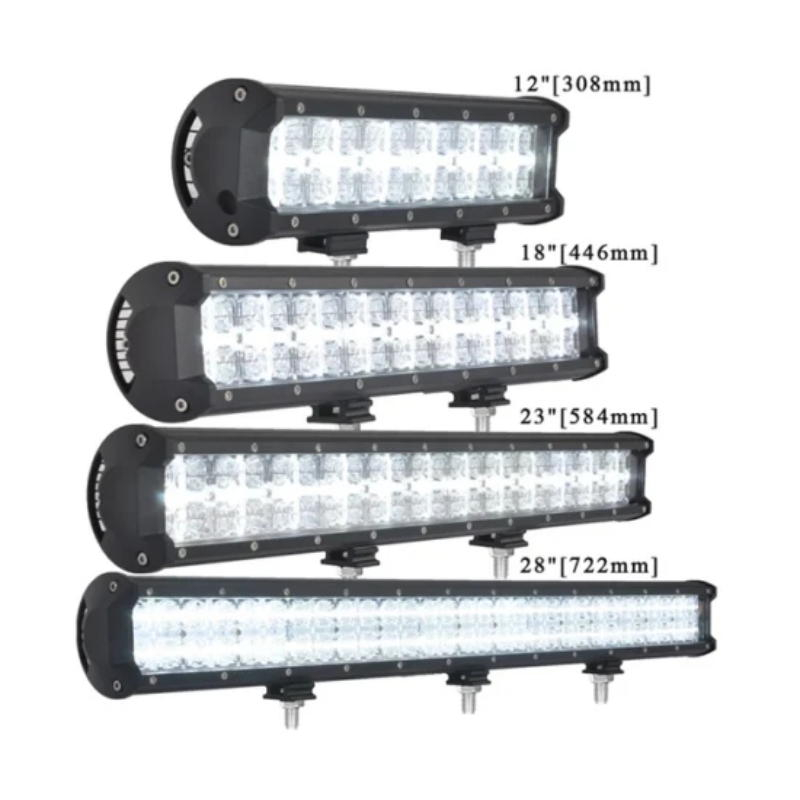

Size Category | Ideal Mounting Location | Primary Beam Pattern | Best Use Case |
|---|---|---|---|
4-Inch Pods | A-Pillar, Ditch, Rear Bumper | Spot or Wide Flood | Peripheral vision, reverse lighting |
10 to 14-Inch | Grille, Front Fascia, ATV Racks | Combo or Flood | Low-draw forward illumination |
20 to 30-Inch | Front Bumper, Bull Bar | Combo | Mid-range trail navigation |
40 to 50-Inch | Roof Rack, Upper Windshield | Combo or Spot | Extreme long-distance visibility |
Navigating the aftermarket lighting industry requires matching specific dimensional categories to real-world applications. Here is an objective breakdown of standard sizes.
Compact 4-Inch Pods for Tight Spaces
Compact units deliver highly targeted illumination. Their minimal footprint eliminates the need for heavy-duty mounting hardware or massive electrical reserves. Specifically, a 4 inch off road led light bar serves as the industry standard for ditch lights. Operating at 72W with focused spot optics, these units punch through the darkness at the peripheral trail edges where factory headlights fall short. They excel as fog light replacements, auxiliary reverse lights, or primary forward lighting for ATVs where space remains at a premium.
The 12-Inch Category as the Versatile Middle Ground
The 10 to 14-inch category represents the most versatile segment in the auxiliary lighting market. This dimension provides a substantial increase in forward visibility without the mounting complexities of heavier models. For front bumper mounting or integration behind factory grilles, this size is ideal. Evaluating efficiency reveals that a high-quality 12 inch 72w off road led light bar offers an optimal balance. Utilizing advanced 7D reflectors, a 72-watt rating indicates a moderate power draw around 6 amps on a standard 12-volt system. It generates intense lumens to illuminate obstacles clearly at moderate speeds without overtaxing standard alternators.
20 to 30-Inch Models for Bumper Integration
Moving up in scale brings us to the 20 to 30-inch models. These are the standard choice for mid-size to full-size trucks and heavy-duty 4x4s. These units fit perfectly within lower bumper openings or mount directly atop heavy-duty winch fairleads. Manufacturers typically utilize a combo beam pattern at this length. Outer edges feature flood reflectors for wide peripheral visibility. The center section utilizes spot reflectors for long-distance penetration. Consequently, this size provides the necessary lumen output for high-speed desert running.
40 to 50-Inch Systems for Maximum Roof-Mounted Illumination
Extreme off-roading and professional overland applications demand maximum light output. The 40 to 50-inch models turn pitch-black environments into daylight. Due to their massive length, they belong exclusively on roof racks or above-windshield mounts using specialized heavy-duty brackets. Buyers must exercise caution here. The sheer weight and wind resistance require reinforced mounting hardware. The intense light output often causes severe glare on the vehicle hood. This requires careful downward adjustment or the application of a matte black hood decal to absorb stray reflections.
Beyond overall length, deciding on the vertical profile impacts both optical performance and the installation process.
The Single Row Profile
A single row off road led light bar utilizes one horizontal line of high-output LED chips. The primary advantage is the sleek, low-profile design. This slim footprint drastically improves aerodynamics to reduce wind noise and drag. Engineers design these specifically to fit tight clearances like narrow bumper slots or low-clearance roof racks. Modern high-wattage chips have largely closed the performance gap, making single-row units incredibly potent despite their small size.
The Dual Row Profile
Dual-row configurations stack two horizontal lines of diodes within a taller housing. This design maximizes the number of LED chips per inch, resulting in maximum total lumen output. Taller reflectors prove particularly effective at generating massive wide flood patterns. Slow-speed rock crawling benefits greatly from this, as the sheer volume of light immediately in front of the vehicle outweighs long-distance penetration. The tradeoff is a bulkier housing that requires more mounting clearance and generates more wind noise at highway speeds.
Analyzing recent market trends reveals a significant shift in off-road lighting preferences. Instead of blindly bolting on the largest 50-inch roof bars available, modern trail enthusiasts increasingly prioritize compact and high-efficiency setups. Rapid advancements in LED chip technology drive this trend. Smaller housings now produce massive lux outputs that easily rival older and bulkier models.
Demand is surging for stealthy and street-legal-looking installations. Drivers want units that integrate seamlessly into factory grilles without screaming aftermarket modifications. The industry is moving away from the bigger is always better mindset. The new focus highlights smarter optics, advanced thermal management, and lower amp draws. This ensures vehicles maintain optimal aerodynamics and electrical stability without sacrificing trail visibility.
Purchasing the correct size requires precise measurement. A mismatch restricts engine airflow, causes structural instability, or prevents the hood from opening safely. Use this engineering checklist for your setup.
Roof Mounts
Measure the distance from the inside of the driver-side door jamb to the inside of the passenger-side door jamb. This exact measurement dictates whether a 50-inch or 52-inch unit is required. Evaluate the curvature of your windshield. A curved housing follows the natural arc of modern truck cabs to provide a cleaner aesthetic and a wider light spread.
Front Bumper and Bull Bars
Bumper mounting requires strict attention to engine cooling. Mounting a massive 30-inch dual-row unit directly in front of the radiator grille restricts essential airflow. This potentially causes engine overheating during high-RPM off-road driving. Measure the distance between pre-drilled mounting tabs on your bull bar to ensure strict compatibility before ordering.
Hood, Ditch, and A-Pillars
Ditch light mounts sit very close to the driver line of sight. Large units will obstruct your view of the trail. Compact 3-inch to 4-inch pods remain the only viable and safe option for A-pillar mounting.
The optimal size depends entirely on mechanical and electrical constraints.
For Full-Size Trucks and Heavy-Duty Rigs
These vehicles possess robust alternators and heavy-duty frames. They easily support a full spectrum of lighting configurations. A highly effective multi-tiered setup includes a 50-inch roof-mounted unit for extreme distance, a 20-inch bumper unit for mid-range flood lighting, and 4-inch ditch lights for peripheral vision.
For ATVs and UTVs
Powersports vehicles operate under strict space and electrical limitations. ATV stators generate significantly less spare wattage than automotive alternators. Installing a massive lighting system will quickly drain the battery and leave you stranded. Electrical efficiency is paramount here. A 10 to 12-inch unit mounted on the front fascia paired with a low-draw single-row unit on the upper roll cage provides excellent illumination without exceeding the electrical budget.
For Overlanding Vehicles
Overlanding demands extreme reliability across varied terrain. Massive high-draw systems often become a liability if they drain auxiliary batteries. Prioritize rugged durability and low power draw. Mid-sized units with combo beam patterns are highly recommended. They provide sufficient lighting for navigating unknown trails without heavily taxing dual-battery systems.
Physical dimensions only tell half the story. Internal electronics, optical engineering, and power consumption dictate true performance. Buyers frequently assume a physically larger housing automatically equates to superior visibility. Empirical data proves that wattage efficiency and specific beam patterns are far more critical metrics for trail safety.
Decoding Spot, Flood, and Combo Patterns
The optical reflector and lens surrounding the LED chip determine exactly how light distributes across the terrain.
Spot Beam: Utilizes a narrow angle ranging from 10 to 30 degrees. Engineers design them to focus light tightly and project it far down the trail. High-speed driving in open environments requires spot beams for maximum reaction time.
Flood Beam: Features a wide angle between 40 and 120 degrees. Prioritizes immediate peripheral visibility to disperse light directly in front of and to the sides of the vehicle. Slow-speed technical maneuvers like rock crawling rely heavily on flood beams.
Combo Beam: Integrates both spot and flood optics within a single unit. Offering the most versatile illumination, combo patterns cover long-range visibility and immediate trail width simultaneously.
Understanding Wattage and Electrical Efficiency
Wattage measures electrical power consumption rather than direct brightness. High-quality LED chips produce significantly more light per watt than older halogen systems. By applying basic electrical principles, a highly efficient 72-watt unit operating on a standard 12-volt system draws merely 6 amps of current. This low amperage eliminates the need to upgrade your factory alternator.
Lumens vs. Lux: Measuring True Usable Light
Raw lumens represent the theoretical maximum output of the LED chips multiplied by the total number of chips. Raw lumens fail to account for thermal loss or optical inefficiencies. Cautious buyers look for effective lumens or lux ratings. Lux measures the actual intensity of light reaching a specific surface area at a given distance. A well-engineered light bar with superior reflectors might have a lower raw lumen count but deliver a higher lux rating at 100 meters than a poorly designed competitor. Prioritize optical efficiency over inflated marketing claims.
A light bar must be built to rigorous engineering standards to ensure long-term reliability in harsh environments. Physical construction determines survival against vibration, moisture exposure, and extreme temperatures.
Verify the Ingress Protection Rating
Off-road vehicles routinely face heavy rain, deep mud crossings, and fine dust. The Ingress Protection rating defines exactly how well the electrical enclosure seals out external elements. Any rating below IP67 is unacceptable for off-road applications. IP67 ensures the unit is totally protected against solid dust and survives temporary submersion in water up to 1 meter. Look for an IP68 rating for severe mud bogging.
Evaluate Housing Material and Thermal Management
Heat degrades LED chips rapidly over time. If a light bar cannot dissipate generated heat, internal circuitry experiences thermal throttling. This results in diminished brightness and eventual failure. Premium lights utilize die-cast aluminum housings. Die-cast housings allow for intricate oversized cooling fins that maximize surface area for passive heat dissipation. Models equipped with military-style breather valves prevent condensation from forming behind the lens.
Inspect Mounting Hardware and Vibration Resistance
The structural integrity of mounting brackets equals the importance of the light itself. Washboard roads and rocky terrain generate severe high-frequency vibrations that fracture cheap metal and strip threads. Ensure all included mounting brackets and hardware consist of 304 or 316 stainless steel to prevent galvanic corrosion. High-quality kits include rubber vibration isolators positioned between the bracket and chassis to dampen shock loads.
Scrutinize the Wiring Harness and Relays
A robust light bar remains useless without a reliable electrical delivery system. A professional-grade wiring harness must include a heavy-duty relay to safely switch high current. It needs an inline blade fuse positioned close to the battery terminal and appropriately sized wire gauges. Ensure the kit uses waterproof Deutsch connectors. These provide a watertight snap-locking connection that refuses to vibrate loose on rough trails.
Selecting the correct lighting size depends entirely on your specific vehicle architecture, driving environment, and electrical capacity. A mid-sized unit offers incredible balance and versatility for most front bumpers. Compact pods remain the undisputed champions of peripheral ditch lighting. Beginners should start with smaller and highly efficient off road LED light bars before committing to massive roof-mounted systems.
Always verify waterproof ratings, prioritize thermal management, and scrutinize wiring harness quality. By measuring mounting locations precisely and understanding the optics behind the glass, you can equip your rig with confidence. For premium and rigorously tested illumination solutions tailored to any trail condition, explore the full lineup of professional-grade equipment at Creklights to elevate your next nighttime adventure.
The 20-inch and 12-inch sizes remain the most popular choices among off-road enthusiasts due to their universal versatility. These mid-sized units fit seamlessly onto most front bumpers, hidden grille mounts, and bull bars without requiring major structural modifications. For drivers looking to maximize overall illumination, 50-inch bars are the standard for roof-level mounting, though they require specific vehicle brackets and proper aerodynamic considerations.
Yes, modern single-row configurations are exceptionally bright and fully capable of illuminating dark trails. Advancements in LED technology mean that manufacturers can now utilize high-output 5-watt or 10-watt chips paired with highly efficient optical reflectors. A well-engineered single-row bar can often produce a higher effective lux output than a cheaper older-generation dual-row bar while saving valuable mounting space.
Compact 4-inch pods are highly versatile and serve specific functional roles. The most effective placement is on the vehicle A-pillars near the lower windshield, angled slightly outward to function as ditch lights. This setup illuminates the peripheral edges of the trail. They are also excellent when mounted on the rear bumper to serve as high-output reverse lights or on the front utility racks of ATVs and UTVs.
Under normal operating conditions with the engine running, it will not drain your battery. A 72-watt light bar operating on a standard 12-volt system draws approximately 6 amps of current. Most modern vehicle alternators generate well over 100 amps, easily accommodating this minimal electrical load. Leaving the light bar turned on for extended periods while the vehicle engine is completely shut off will eventually deplete the battery.
Generally, off-road auxiliary lighting is strictly prohibited for use on public streets and highways. These lights do not conform to Department of Transportation or Society of Automotive Engineers regulations for on-road beam patterns, meaning they will severely blind oncoming traffic. Most local jurisdictions require off-road lights to be physically covered with opaque snap-on covers while driving on public pavement. Always verify your specific local and state laws.
You can determine the electrical draw of a new light bar using a simple formula. Divide the total wattage of the light bar by your vehicle voltage. For a 120-watt light bar on a 12-volt system, the draw is 10 amps. Review your factory alternator rating and subtract the amperage used by standard vehicle electronics like the AC, radio, and factory headlights. If the remaining spare amperage exceeds the draw of your new light bar, your alternator can safely handle the load.
Raw lumens represent a theoretical calculation based on the maximum output of the LED chips multiplied by the total number of chips in the housing. It does not account for heat loss or poor reflector design. Effective lux measures the actual usable light that reaches a specific distance down the trail. A light bar with superior optical engineering will project a higher lux measurement than a poorly designed unit, even if the raw lumen claim is lower.
