Imagine navigating a jagged washboard trail at dusk. Suddenly, you hear the sickening crunch of your expensive LED light bar snapping off its mount. Sound familiar? Many drivers drastically underestimate bracket weight limits. They focus entirely on lumen output rather than structural integrity. Consequently, this oversight causes severe equipment damage. It also introduces serious safety risks on both the trail and the highway.
In this comprehensive guide, we will demystify the engineering behind bracket load limits. You will learn exactly how capacity is calculated. We will explore the critical differences between static and dynamic forces. Finally, you will discover how to confidently choose the right mounting hardware to keep your investment secure.
Weight capacity involves more than static mass: It requires calculating dynamic forces like trail vibrations and sudden impacts, multiplied by the actual weight of the lighting accessory.
Material properties dictate structural strength: A steel bracket offers maximum rigidity and fatigue resistance, while an aluminum alternative provides lightweight versatility and excellent corrosion resistance.
Engineering safety factors are non-negotiable: Reputable automotive accessory manufacturers utilize a Safety Factor multiplier, typically three to five times the stated load, to ensure the hardware will not fail under extreme off-road mechanical stress.
Mounting location alters load requirements: Roof mounts, hidden bumper mounts, and tubular clamps all experience distinct aerodynamic drag and physical stress profiles that directly impact the required weight capacities.
Looking at recent developments in automotive accessory engineering, there is a clear paradigm shift in how structural limits are defined. Leading manufacturers are rapidly adopting digital twin technology and Finite Element Analysis. Instead of relying purely on destructive physical testing, engineers now simulate extreme stress environments in CAD software. This evolution means modern capacity calculations account for micro-vibrations and thermal expansion long before a prototype is even milled. As a result, the aftermarket industry is moving away from generic static ratings toward highly accurate, environment-specific dynamic load standards.
When modifying a vehicle for off-road use, understanding the exact capacity of your exterior accessories is a critical safety requirement. In the context of automotive engineering, weight capacity refers to the maximum load a structure can safely support without experiencing permanent deformation or catastrophic failure.
To fully grasp this concept, we must first look at the anatomy of a standard light mounting bracket. A typical unit consists of a base plate securely attaching to the vehicle chassis, a mounting arm extending outward to hold the light, mounting holes, and structural reinforcements known as gussets. The load of the light bar is distributed across these specific geometric points. If the base plate is too thin, or the mounting arm extends too far without gusset support, the structural integrity is severely compromised.
I have seen countless drivers rely on guesswork when selecting hardware, which inevitably leads to disaster on the trail. Simply holding a piece of metal in your hands and estimating its strength cannot account for the complex mechanical stresses introduced by a moving 5,000-pound vehicle. Selecting hardware based on empirical data and stated capacities prevents costly damage and eliminates hazards.
Before diving into the math, we need to understand the physical forces at play. The foundation of weight capacity calculation relies on Newton’s Second Law of Motion: Force equals Mass times Acceleration.
In automotive applications, the mass is the physical weight of your LED light assembly. The acceleration refers to the kinetic forces generated by the vehicle movement. When a truck drives over deep potholes or rocky terrain, it generates violent vertical and horizontal acceleration. Therefore, the force exerted on the bracket is never just the static weight of the light. It is that weight exponentially multiplied by the kinetic impact.
As engineers, we evaluate metal brackets using two specific metallurgical thresholds. Safe weight capacity is always calculated based on keeping the bracket well below its Yield Strength.
Metric | Definition | Structural Consequence |
|---|---|---|
Yield Strength | The exact point of stress where the metal bends and will not return to its original shape. | Permanent deformation; the bracket is compromised but still holding. |
Ultimate Tensile Strength | The maximum stress the material can withstand before completely fracturing or breaking. | Catastrophic failure; the bracket snaps and the light falls off. |
To ensure absolute safety on public roads, manufacturers do not advertise the Yield Strength as the official weight capacity. Instead, they apply a Safety Factor.
This factor is a multiplier used to account for unpredictable variables like extreme weather, metal fatigue, and manufacturing variances. For example, if laboratory testing shows that a bracket bends at 100 pounds of force, and the engineering team applies a Safety Factor of four, the official advertised weight capacity will be 25 pounds. This built-in buffer ensures the hardware remains structurally sound during severe, unexpected off-road abuse.
Consider static load as the downward gravitational force exerted by the accessory when the vehicle is completely stationary. If you purchase a 15-pound light bar and mount it to your truck parked in a garage, it exerts exactly 15 pounds of static force. While easy to measure, static load is an entirely inadequate metric for a moving vehicle.
Dynamic load represents the true test of structural integrity. When a vehicle is in motion, kinetic energy violently alters the effective weight of attached accessories. If you hit a severe bump at 50 miles per hour, the suspension and chassis transfer that energy upward, easily generating substantial kinetic force. Consequently, a 15-pound light bar temporarily exerts 45 to 75 pounds of dynamic force on the bracket. If the hardware is only rated for a 20-pound static load, it will fracture under this dynamic stress.
Beyond vertical forces, brackets must withstand horizontal aerodynamic drag. A massive 52-inch light bar mounted above the windshield acts similarly to a deployed parachute. At highway speeds exceeding 70 miles per hour, air resistance creates a massive horizontal push. This drag adds a rotational torque to the bracket, forcing it backward while gravity simultaneously pulls it downward. Managing this complex combination of forces requires highly specialized, aerodynamically tested hardware.
Aluminum finds wide use in aerospace and automotive manufacturing due to its exceptional strength-to-weight ratio. A premium adjustable aluminum light mounting bracket is typically forged or CNC-machined from robust aircraft-grade alloys like 6061-T6.
The primary advantage of aluminum is its natural resistance to oxidation. It will never rust when exposed to rain, snow, or corrosive road salt. Furthermore, aluminum remains highly malleable during the manufacturing process. This makes it the ideal material for complex, modular geometries like adjustable X-clamps or roll cage tube mounts. While aluminum generally has a lower overall yield strength than steel, engineers compensate by increasing the material thickness, resulting in a lightweight yet incredibly durable mount.
When maximum rigidity is required to combat severe leverage and wind drag, steel remains the undisputed industry standard. A purpose-built steel roof light bar bracket is generally manufactured from high-carbon steel or 304 stainless steel, specifically designed to fit heavy-duty applications like Jeep Wrangler JK modifications.
Heavy 50-inch or 52-inch roof light bars demand steel brackets primarily due to the superior fatigue limit of the metal. The fatigue limit is the highest stress level a material can withstand for an infinite number of load cycles without failing. Because roof-mounted lights are subjected to millions of micro-vibrations from wind shear and engine resonance, steel can flex microscopically millions of times without snapping. While heavier, it offers unparalleled dynamic load capacity for massive overhead installations.
The thickness of the metal is the most direct variable affecting load-bearing capacity. However, the relationship is exponential rather than merely linear. Increasing the thickness of a metal plate slightly can double or even triple its bending stiffness. In practice, a three-millimeter thick bracket will safely hold significantly more dynamic weight than a two-millimeter thick bracket of the exact same alloy.
A flat piece of metal is inherently weak against bending forces. To combat this, engineers utilize specific geometric designs to increase structural rigidity without adding excessive bulk. Flanged edges act as stiffening ribs. Welded triangular gussets prevent the mounting arm from acting as a hinge. These reinforcements drastically increase the overall load capacity.
A bracket is only as strong as the mechanical fasteners securing it to the vehicle. Standard zinc-plated hardware can easily shear under extreme dynamic loads. High-capacity brackets require Grade 8 steel bolts or high-tensile stainless steel hardware. The shear strength of the bolt must exceed the dynamic load calculations of the bracket itself.
In physics, torque is calculated by multiplying force by distance. The further a light bar sticks out away from the vehicle chassis, the more leverage it applies to the bracket. A 10-pound light mounted one inch from the base applies far less stress than that same light extended six inches outward. Brackets with long extension arms inherently possess lower effective weight capacities due to this leverage effect.
Designed to hold massive light bars across the upper windshield, roof mounts face the most extreme environmental variables. They are subjected to maximum aerodynamic drag, high-frequency wind vibrations, and severe leverage forces. Consequently, roof brackets require a highly rigid structure. They usually utilize thick steel and multiple mounting points along the A-pillar to distribute the kinetic load safely.
For instance, a precision-engineered heavy duty light bar mounting bracket designed for a 20-inch hidden bumper setup provides a lower center of gravity and significantly reduced wind resistance. However, because these attach directly to the vehicle frame or crash bar, they remain highly susceptible to direct impact shocks and low-frequency chassis vibrations. The hardware here must prioritize impact resistance over aerodynamic deflection.

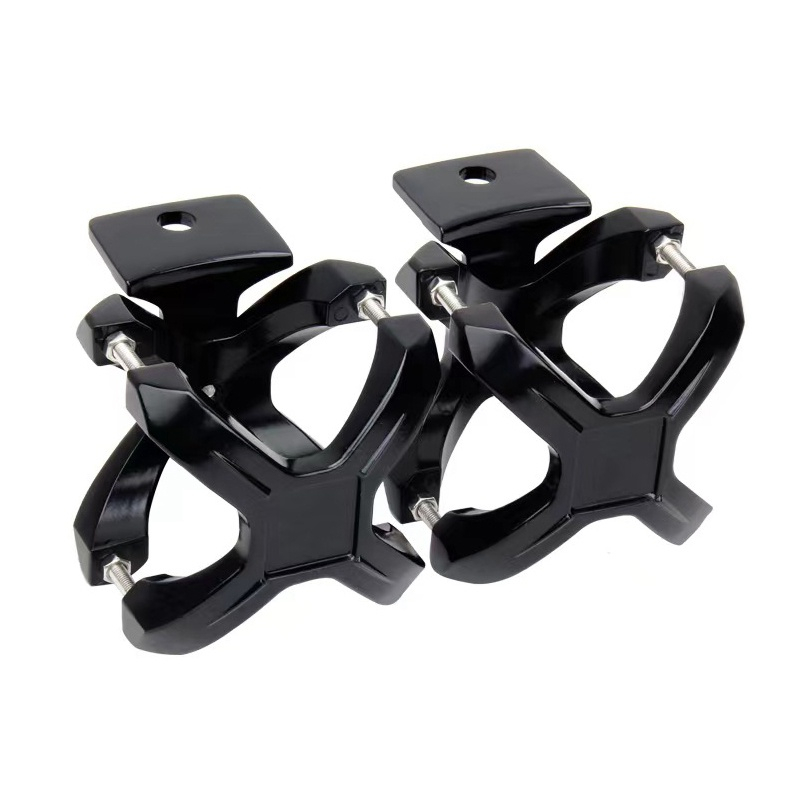

Mounting lights to cylindrical surfaces requires specialized clamping mechanisms. The weight capacity in this location is heavily dependent on clamping force and surface friction. If the clamp cannot generate enough friction against the tube, the dynamic weight of the light will cause the bracket to rotate downward upon hitting a bump on the trail.
Recognizing when your current hardware is underperforming is a critical step in preventing equipment failure. Many vehicle owners underestimate the mechanical stress placed on exterior accessories, leading to unexpected damage during transit. If you are evaluating your current setup, look for these empirical indicators.
Visual Vibrations and Beam Bounce: The most immediate sign of an inadequate mounting solution is visual vibration. If you observe the beam of your LED light bouncing wildly while driving on relatively flat paved roads, the bracket is experiencing excessive flex. This phenomenon occurs when the dynamic load of the light bar matches or exceeds the resonance frequency of the mounting hardware. Continuous oscillation accelerates metal fatigue at the mounting base.
Visible Bending or Micro-Cracks: Routine hardware inspections are highly recommended. Look closely at the primary bend points and the areas surrounding the mounting bolts. If you notice the metal has begun to yield, meaning it is permanently bent out of its original shape, the bracket has surpassed its maximum load capacity. Furthermore, inspect the powder coating near the joints. Flaking paint often conceals micro-cracks in the underlying metal lattice. Once a micro-crack forms, failure is imminent, and an immediate upgrade is required to restore safety.
Upgrading Light Sizes: A common oversight occurs when vehicle owners upgrade their lighting equipment without upgrading their brackets. A standard bracket designed for a lightweight 20-inch light bar will not possess the geometric strength required for a 50-inch unit. Larger light bars extend further outward from the mounting axis, acting as a lever and exponentially multiplying rotational force.
Selecting the appropriate hardware demands a structured, mathematical approach. By calculating expected dynamic forces, you can objectively determine the required weight capacity for your specific off-road application.
Step 1: Determine the Static Weight
Consult the manufacturer specification sheet to find the precise weight of the LED unit, including any attached wiring harnesses. Do not rely on shipping weight, as packaging materials artificially inflate the number. For this example, assume a standard 50-inch light bar weighs exactly 18 pounds.
Step 2: Factor in the Terrain Multipliers
Once in motion, vertical acceleration generated by uneven terrain multiplies the effective force exerted on the bracket. You must multiply your static weight by the appropriate terrain factor.
Driving Environment | Expected Force Multiplier | Example Dynamic Load |
|---|---|---|
Smooth Highway Driving | 1.5 to 2.0 times | 27 to 36 pounds |
Gravel or Washboard Roads | 3.0 to 4.0 times | 54 to 72 pounds |
Light Off-Road Trails | 4.0 to 5.0 times | 72 to 90 pounds |
Extreme Rock Crawling | 6.0 times or higher | 108 pounds or more |
If you plan to navigate light off-road trails, you must assume the bracket will temporarily experience up to 90 pounds of downward force, despite the light bar only weighing 18 pounds.
Step 3: Account for Aerodynamic Drag
For accessories mounted above the windshield, wind resistance introduces a significant horizontal force. A prudent rule of thumb is to add an additional thirty percent to your dynamic load requirement to account for continuous wind shear at speeds exceeding 65 miles per hour.
Step 4: Check the Bracket Specs
Verify that the prospective bracket can handle this force without reaching its yield strength. If your calculated dynamic load is 100 pounds, a bracket with a Safety Factor of two must be engineered to withstand 200 pounds of force before bending. Always review the technical specifications to confirm maximum rated capacity.
Step 5: Confirm Structural Alignment
Finally, the strongest bracket in the world is useless if mounted to a weak point on the vehicle. Ensure the hardware is specifically engineered for your make and model. Precision-cut brackets align perfectly with factory-reinforced structural nodes, ensuring that heavy dynamic loads are distributed evenly across reinforced channels.
Calculating weight capacity is the most crucial step in ensuring your equipment survives rough trails and highway speeds. Dynamic forces, impact shocks, and aerodynamic wind drag test your hardware daily, pushing standard metal past its yield strength.
By understanding the math behind static and dynamic loads, and choosing the appropriate materials, you protect your expensive lighting investment. Review your current hardware today and perform a visual inspection for micro-cracks or bending. When you are ready to upgrade your off-road lighting setup, explore the professional-grade solutions at CREK Lights. From robust steel roof mounts to versatile aluminum X-clamps, you will find hardware engineered to exceed the most demanding dynamic load requirements.
No, utilizing standard or universal hardware for a 52-inch roof-mounted light bar is highly discouraged. Large light bars possess significant static mass and present a massive surface area to oncoming wind. At highway speeds, the aerodynamic drag creates severe horizontal stress, while road imperfections generate vertical dynamic loads. Standard brackets lack the necessary gauge thickness and structural gussets to resist these combined forces, leading to inevitable mechanical failure.
Not necessarily. The strength of a bracket is determined by the specific alloy used, the thickness of the material, and the geometric design. While standard mild steel generally possesses a higher ultimate tensile strength than basic aluminum, aerospace-grade aluminum alloys offer exceptional strength-to-weight ratios. A well-engineered, thick aluminum bracket can safely support heavy dynamic loads while providing the added benefit of complete corrosion resistance.
In mechanical engineering, the Safety Factor is a multiplier that indicates how much stronger a system is than its intended maximum operational load. If a bracket has a stated weight capacity of 50 pounds and is designed with a Safety Factor of three, the manufacturer has engineered the component to withstand up to 150 pounds of force before reaching its structural failure point. This built-in margin of error is critical for surviving sudden, unpredictable off-road impacts.
Highway vibration is a direct symptom of structural inadequacy or poor load distribution. When wind resistance pushes against the light bar, a thin bracket will flex, causing rapid oscillation. To eliminate this issue, verify that your bracket weight capacity exceeds your dynamic load calculations. Ensure all mounting bolts are torqued to precise specifications using Grade 8 hardware. If vibrations persist, upgrading to a thicker, geometrically reinforced bracket is the only definitive solution.
Extreme temperature fluctuations can impact the structural integrity of mounting hardware, particularly where different metals interact. In freezing conditions, certain lower-grade steels can become brittle, slightly reducing their impact resistance. Conversely, intense engine heat or desert sun can cause microscopic thermal expansion. High-quality brackets account for these thermal cycles through specific alloy selection and heavy-duty powder coating, ensuring the yield strength remains stable across diverse climates.
Tensile strength refers to the maximum amount of outward pulling force a bolt can withstand before stretching and breaking. Shear strength, on the other hand, measures the resistance to cutting forces that push perpendicular to the bolt shaft. In off-road bracket applications, shear strength is often the most critical metric. When a heavy light bar violently bounces over rough terrain, it acts like a guillotine against the mounting bolts, which is why utilizing high shear-rated hardware is absolutely essential.
