Off-road forums are filled with stories of lighting equipment failing within weeks of installation. Manufacturer marketing paints a picture of absolute invincibility. The reality on dirt trails or marine environments is much different. Buyers frequently invest in expensive lighting setups only to experience rapid diode burnout, lens condensation, or bracket snapping. These failures stem from inadequate environmental sealing, poor internal soldering, and weak vibration resistance.
You need a systematic framework to evaluate, benchmark, and physically test your equipment. Relying solely on a specification sheet leaves your vehicle vulnerable to sudden equipment failure during nighttime operations. Testing ensures the hardware meets rigorous operational demands before you commit to a permanent, time-consuming installation. By verifying structural integrity and electrical stability upfront, you eliminate the risk of deploying compromised gear.
Seal Integrity is the Primary Failure Point: The curved geometry creates unique stress points on lens seals, making rigorous water ingress testing (thermal cycling) critical.
IP Ratings Require Verification: An "IP67" or "IP68" sticker does not guarantee real-world survival; bench testing and controlled moisture exposure are necessary pre-installation steps.
Vibration Kills Cheap Hardware: Heavy-duty applications require evaluating not just the light housing, but the structural integrity of the mounting brackets, isolation dampeners, and internal solid-state solder joints.
Manufacturer QA Transparency Matters: The most durable light bars come from brands that publish their internal and external testing data, proving their claims before the consumer ever opens the box.
Thermal Management Dictates Lifespan: Effective heat sinks and military-style breather valves are non-negotiable for preventing internal condensation and diode degradation.

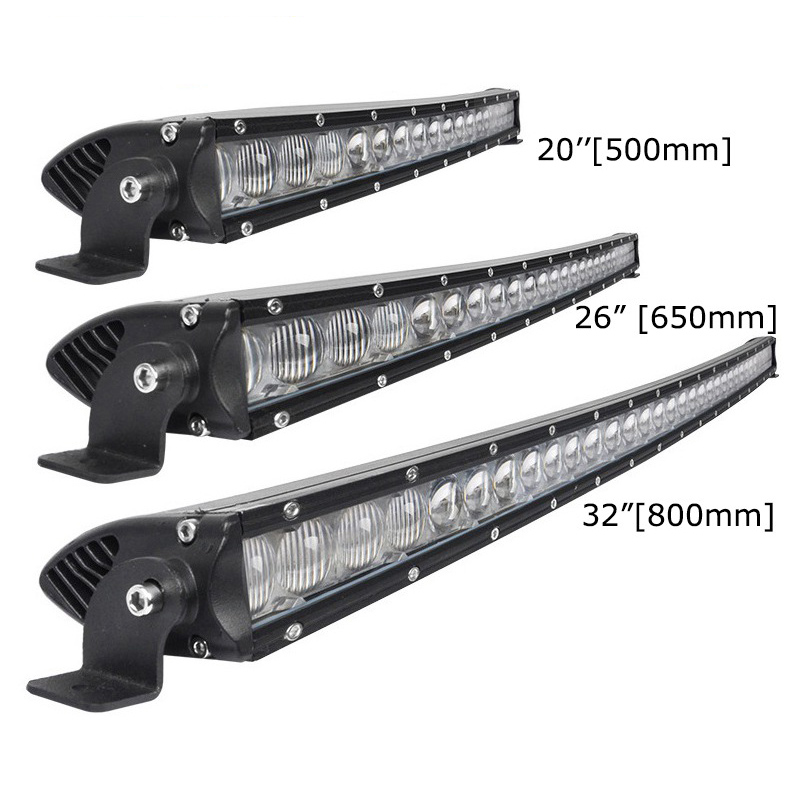

The physical shape of a lighting housing dictates how it handles environmental stress. Straight housings distribute physical loads evenly across their entire length. A swept housing introduces specific engineering hurdles that manufacturers must overcome. The arc design fundamentally alters how the materials interact under thermal and physical strain. When mounting these on a heavy-duty bumper or a roof rack, the sheer width of a 50-inch curved bar acts as a lever. Every bump on a washboard road sends shockwaves through the chassis, which are amplified by the time they reach the light bar mounts. If the manufacturer skimped on the internal bracket supports, the entire housing will flex. This flexing is what ultimately destroys the internal solder joints and breaks the waterproof seal.
The extruded curve places continuous tension on the polycarbonate lens. Polycarbonate naturally resists bending and attempts to return to a flat state. This constant outward pressure strains the silicone seals securing the lens to the aluminum housing. Over time, this tension increases the risk of micro-fissures developing along the gasket line. When you hit rough terrain, chassis flex amplifies this tension. Poorly engineered seals will eventually separate. This allows moisture to bypass the primary barrier. I have seen countless units fail simply because the manufacturer used standard straight-bar gaskets on a curved frame. You need deep-channel seals specifically molded for the arc.
A wider, sweeping profile catches more wind at highway speeds. This aerodynamic drag transfers higher frequency vibrations directly to the mounting points. Straight bars slice through the air with a uniform frontal area. The swept design acts slightly like a parachute. It captures turbulent air across its concave face. These high-frequency vibrations travel through the housing and into the internal circuitry. If the internal components lack proper stabilization, these vibrations will fracture delicate solder joints. You will notice this as a high-pitched whistle or a visible jitter in the beam pattern while driving.
Lighting components generate massive amounts of heat. The aluminum housing and the polycarbonate lens expand at entirely different rates when subjected to this heat. Aluminum expands faster and more significantly than plastic. This thermal expansion discrepancy forces the components to shift against each other. If the manufacturer does not engineer flexible, high-tolerance gaskets, this shifting compromises the waterproofing. Repeated heating and cooling cycles will eventually tear rigid sealants apart. We often see this failure after a sudden rainstorm hits a hot light bar on the trail.
Despite these structural challenges, buyers should accept no compromises. Top-tier swept models are engineered specifically to overcome these exact physical limitations. They utilize deep-channel gaskets and specialized adhesives to maintain seal integrity under tension. A high-quality unit should achieve the exact same IP68 or IP69K durability ratings as its straight counterparts. The engineering required is more complex, but the final environmental resistance must remain identical. If a brand offers a lower warranty on their curved models, walk away.
Filtering out low-quality options during the pre-purchase phase saves time and frustration. You must look past marketing terminology and focus on published testing data. Technical specifications reveal the true build quality of the unit. Understanding how to read these specifications allows you to separate heavy-duty equipment from disposable accessories.
The first step in evaluating a unit is examining the lens material and optical clarity. Cheap units use standard acrylic lenses that yellow rapidly under UV exposure. Professional-grade units utilize hard-coated polycarbonate. Polycarbonate offers superior impact resistance against gravel and branch strikes. You should also verify the optical design. Look for total internal reflection (TIR) optics rather than basic chrome reflectors. TIR optics capture and direct more light. This reduces internal heat generation and maximizes forward projection.
Ingress protection ratings define exactly what a housing can withstand. An IP67 curved LED light bar is tested for submersion up to 1 meter for exactly 30 minutes. This is a static test performed in a controlled tank. It does not account for the dynamic pressure of driving through a river at 20 miles per hour. IP68 indicates continuous submersion beyond 1 meter. IP69K represents resistance to high-pressure, high-temperature steam washing. For serious off-road deployment, IP67 is the absolute minimum baseline. IP68 is strongly preferred for any vehicle seeing mud or deep water crossings.
Thermal management directly dictates diode lifespan. A heavy duty curved LED light bar relies on 6063 extruded aluminum for its main body. This specific aluminum alloy offers excellent thermal conductivity and structural rigidity. Inspect the cooling fins on the rear of the unit. Oversized, deep-cut cooling fins increase the surface area available for heat dissipation. Shallow or purely cosmetic fins will cause the internal temperature to spike. This leads to premature diode degradation. You must also verify the presence of a UV-resistant powder coating to prevent chalking and corrosion.
The best housing in the world is useless if the mounting brackets snap. Budget kits often include cheap, rust-prone steel alloys or brittle cast aluminum brackets. Heavy-duty applications require 304 or 316 stainless steel mounting hardware. Stainless steel resists galvanic corrosion. This is especially true in coastal or winter environments where road salt is prevalent. The brackets themselves should be stamped from thick steel or machined from billet aluminum. Look for rubber isolation dampeners included with the mounting hardware to absorb chassis vibrations.
Generic factory claims hold very little weight. Buyers should look for brands that provide transparent internal and external testing protocols. Reputable manufacturers publish their photometric data, integrating sphere test results, and vibration table analytics. They prove their claims before the consumer ever opens the box. If a manufacturer cannot provide documentation of their salt-spray testing or thermal shock evaluations, their durability claims are purely speculative.
Component | Budget Specifications | Heavy-Duty Specifications |
|---|---|---|
Housing Material | Cast Aluminum (Porous, brittle) | 6063 Extruded Aluminum (Dense, strong) |
Lens Material | Standard Acrylic (Prone to yellowing) | Hard-Coated Polycarbonate (Impact resistant) |
Mounting Hardware | Zinc-Plated Steel (Rusts quickly) | 304/316 Stainless Steel (Corrosion resistant) |
Ingress Protection | Unverified IP65/IP67 | Verified IP68/IP69K with Breather Valve |
Thermal Management | Shallow, cosmetic fins | Deep-cut, high surface area fins |
Never install lighting equipment without testing it first. Once you mount the unit and run the wiring harness through your firewall, returning a defective product becomes a massive headache. Step-by-step bench testing methods allow you to evaluate a newly purchased waterproof curved LED light bar before voiding the return policy. These tests simulate months of field abuse in a matter of hours.
You must benchmark your specific unit against known standards. Ultra-cheap units often fail initial electrical draw and thermal tests right out of the box. A premium unit will perform exactly as stated on the specification sheet. Establishing this baseline requires a regulated 12V bench power supply capable of handling high amperage. A proper bench test requires a variable DC power supply rated for at least 30 amps. Many 50-inch curved bars pull upwards of 20 amps at 12 volts. If you try to test this with a standard 5-amp trickle charger, the power supply will trip, or the light will flicker, giving you a false negative on the health of the diodes. Always ensure your testing equipment matches the electrical demands of the hardware.
This test verifies the integrity of the lens seal and the functionality of the pressure equalization valve. Follow these exact steps to force a thermal cycle:
Connect the unit to your 12V bench power supply in a dry, room-temperature environment.
Run the light continuously for 45 minutes. The housing should become hot to the touch as it reaches maximum operating temperature.
Once fully heated, immediately spray the front lens and housing with ice-cold water from a spray bottle or hose.
Observe the rapid cooling. This creates an internal vacuum. If the seals are weak, or if the breather valve fails, the vacuum will suck water past the gaskets.
Leave the light off for ten minutes, then inspect the inside of the lens for internal fogging or water droplets.
Manufacturers frequently inflate lumen output and wattage claims. You can verify the true power using a digital multimeter. Wire the multimeter in series with your power supply to measure the exact amp draw. Multiply the measured amps by your supply voltage (typically 12.8V to 13.8V) to calculate the true wattage. If a manufacturer claims 300 watts, but the unit only draws 10 amps at 12 volts, it is actually a 120-watt unit. This test ensures the diodes are not being overdriven. Overdriving is a common tactic in cheap bars to artificially inflate initial brightness at the cost of long-term survival.
Physical construction can be tested without mounting the unit to a vehicle. While the curved Led light bar is powered on, apply moderate manual torsional pressure to both ends. Twist slightly in opposite directions. Next, tap the aluminum housing firmly with a rubber mallet along its entire length. Watch the light output closely. If you observe any flickering, dimming, or dead sections, the internal PCB soldering is defective. High-quality units feature fully potted circuit boards that easily withstand this level of physical shock.
Bench testing eliminates factory defects, but field testing proves long-term viability. You must monitor the equipment during its active deployment. Identifying early warning signs of failure allows you to address issues before they cause a complete system blackout on the trail. Real-world conditions introduce variables that cannot be perfectly simulated in a garage.
The first two to three weeks of active use are critical. This period is known as the infant mortality window for electronics. Manufacturing defects that survived bench testing will typically reveal themselves here. Watch closely for peeling powder coat around the bolt holes, rapid yellowing of the polycarbonate lens, or immediate diode burnout. Off-road community long-term reviews frequently cite this specific window as the most common time for catastrophic hardware failure. If it survives the first month of hard use, it will likely last for years.
Washboard dirt roads and heavy marine chop are the ultimate tests for mounting hardware. Drive over corrugated surfaces at moderate speeds to induce high-frequency vibrations. Observe the beam pattern against a flat surface or tree line. Severe beam jitter indicates bracket fatigue or insufficient metal thickness in the mounting feet. If the light housing physically droops or changes angle after a rough trail, the locking teeth on the mounting brackets are failing to hold torque. You may need to upgrade to thicker, aftermarket steel brackets.
The front face of the unit takes constant abuse from the environment. Assess the polycarbonate lens's ability to withstand branch strikes and gravel kick-up. After a weekend on tight, overgrown trails, inspect the lens for severe pitting or deep scratches. A high-quality hard coating will deflect minor impacts without leaving permanent marks. If the lens cracks from a standard gravel strike, the polycarbonate is too thin or lacks the necessary flexibility to absorb kinetic energy.
Environmental degradation happens slowly. Monitor the housing for UV degradation, which presents as fading or chalking of the black powder coat. Inspect the mounting points for galvanic corrosion. This occurs when dissimilar metals, like stainless steel bolts and aluminum housings, react in the presence of an electrolyte like saltwater or road slush. We see this constantly in marine and coastal applications. White, powdery buildup around the bolt threads is the first sign of galvanic corrosion. Use anti-seize paste during installation to prevent this.
Even high-end equipment can fail if installed incorrectly or neglected. Identifying where these failures occur allows you to implement preventative measures. Maintenance and proper installation techniques drastically extend the operational lifespan of your lighting investment.
LEDs are solid-state devices and lack fragile filaments. However, the internal printed circuit board (PCB) relies on hundreds of tiny solder joints. These joints are highly susceptible to high-frequency vibrations. If the PCB is not properly secured or potted in epoxy, the board will flex inside the housing. This flexing eventually cracks the solder, leading to dead diode sections. To prevent this, purchase units with heavy-duty PCB dampening and ensure your mounting brackets utilize rubber isolation pads.
High-quality units utilize pressure-equalizing breather valves, often featuring Gore-Tex membranes. These valves allow air to escape as the housing heats up, preventing blown seals. If mud, wax, or trail debris clogs this membrane, the valve cannot function. When the unit cools, it will pull a vacuum and suck water past the lens gasket. Prevent this by implementing regular inspection and cleaning protocols. Gently wash the breather valve area with mild soap and water after every muddy excursion. Never hit the breather valve directly with a pressure washer.
Many failures attributed to the light housing are actually wiring harness failures. Using undersized, unsealed relays exposes the electrical system to moisture and dirt. Corrosion builds up on the relay contacts, causing voltage drops and eventual burnout. When routing your wiring harness, avoid running the main power lead directly next to high-heat engine components like the exhaust manifold. The heat will melt the wire loom and eventually short the system. Fix this by upgrading the electrical supply lines. Use marine-grade, tinned copper wiring to prevent internal wire corrosion. Install fully potted, waterproof relays and ensure all connections are sealed with adhesive-lined heat shrink tubing.
You must distinguish between normal atmospheric condensation and active water pooling. Temporary condensation can occur due to rapid altitude or temperature changes. This creates a light fog on the inside of the lens. If the breather valve is functioning, this fog will burn off after 20 minutes of operation. Active water ingress presents as large droplets or visible pooling at the bottom of the housing. Pooling indicates a permanently failed seal that requires immediate warranty replacement. Do not attempt to reseal it yourself with silicone, as this voids the warranty.
Perform a 45-minute thermal cycle bench test immediately upon receiving your equipment to verify seal integrity before routing any wires.
Measure the actual electrical draw with a digital multimeter to confirm the manufacturer's wattage claims and ensure your vehicle's alternator can handle the load.
Install high-quality, rubber-isolated mounting brackets to protect the internal circuitry from high-frequency chassis vibrations.
Apply dielectric grease to all electrical connections and anti-seize compound to mounting bolts to prevent long-term galvanic corrosion.
A: They are not inherently less durable, but they require higher manufacturing standards. The arc creates constant structural tension on the polycarbonate lens and silicone seals. High-quality manufacturing overcomes this tension using deep-channel gaskets and flexible adhesives, ensuring both shapes achieve the same IP68/IP69K durability ratings.
A: An IP67 rating means the unit is completely dust-tight and can survive submersion in water up to 1 meter deep for exactly 30 minutes. It is a static test. While it serves as a baseline for off-road use, it does not guarantee protection against high-pressure water sprays or deep, prolonged river crossings.
A: Light fogging is often temporary condensation caused by rapid temperature or altitude changes. This should burn off through the breather valve once the light heats up. However, large water droplets or pooling at the bottom indicates a permanent seal failure or a clogged breather valve, requiring immediate replacement.
A: Whistling is caused by aerodynamic resonance as wind passes over the cooling fins. You can stop this by adjusting the mounting angle slightly to change the airflow. Additionally, installing rubber vibration dampeners between the cooling fins disrupts the airflow and eliminates the harmonic resonance.
A: Standard off-road units will degrade quickly in marine environments. Saltwater causes rapid galvanic corrosion and destroys standard powder coating. For a boat, you must use a marine-grade unit featuring specialized anti-corrosive coatings, 316 stainless steel hardware, fully potted electronics, and a verified IP68/IP69K rating.
