Improperly wiring high-draw auxiliary lighting introduces severe mechanical risks to your vehicle. Bypassing standard electrical protocols often leads to melted cabin switches, electrical fires, drained batteries, and compromised vehicle control modules. Many installers face confusion surrounding relay logic, proper wire gauge selection, and safe integration with modern vehicle electrical systems. Understanding these concepts prevents premature equipment failure and ensures long-term reliability.
A standardized automotive relay wiring harness solves these core problems. It bridges the gap between high-power requirements and safe cabin control. This guide serves as a definitive technical resource for mastering relay diagrams. You will learn how to evaluate pre-built versus custom harnesses, select the correct components, and execute a safe, compliant, and weather-resistant installation.
Relays are Non-Negotiable: High-amperage auxiliary lights require a relay to isolate the high-current circuit from the low-current cabin switch, preventing thermal overload and switch failure.
Component Synergy Dictates Safety: The reliability of an LED light bar wiring harness depends entirely on matching the wire gauge (AWG), fuse rating, and relay capacity to the specific continuous wattage of the light bar.
System Voltage Matters: Component selection must align with the vehicle's electrical architecture, requiring specific adaptations when configuring a 12V 24V LED light bar system.
Environmental Protection is Critical: Utilizing IP-rated relays and sealed connectors (like Deutsch or Weather Pack) prevents moisture intrusion, which is the leading cause of off-road electrical failure.
Pre-Built vs. Custom Trade-offs: While pre-assembled harnesses offer plug-and-play convenience, custom-built harnesses provide superior weatherproofing, exact-length routing, and advanced OEM switch integration for professional-grade builds.
Understanding the electrical physics of auxiliary lighting defines the success criteria for any installation. Power consumption relies on a simple formula: Watts divided by Volts equals Amps. A standard 300-watt light operating on a 12-volt system draws 25 amps of continuous current. If you mount a massive 500-watt array, that draw jumps to over 41 amps. Standard cabin rocker switches typically handle only 3 to 5 amps. Pushing 25 amps through a 5-amp switch guarantees immediate component failure. You must manage this high current safely to ensure consistent light output and vehicle safety.
When you exceed a switch's amperage rating, the internal resistance generates extreme heat. This heat melts the plastic housing holding the copper contacts. Once the plastic deforms, the contacts shift, arc, and weld together. You lose the ability to turn the light off, and the resulting thermal runaway often ignites the surrounding dashboard wiring.
Routing high-current power directly through a dashboard switch invites disaster. Beyond switch failure, running long lengths of inadequate wire into the cabin causes severe voltage drop. The wire acts as a resistor. Instead of delivering 12 volts to your lighting unit, the resistance might drop the delivery to 9 or 10 volts. The lost energy converts directly into heat along the wire jacket. This thermal overload melts wire insulation, destroys surrounding dashboard plastics, and frequently ignites electrical fires.
Direct wiring also forces you to route heavy-gauge, unfused power cables through the vehicle firewall. If the firewall grommet fails and the metal edge slices into the positive wire, the entire chassis becomes a ground path. Without a relay and proper inline fusing, the battery will dump its entire cold-cranking amperage into that short circuit, instantly vaporizing the wire and starting an engine bay fire.
Think of a relay as a heavy-duty, electromagnetic switch. It allows a safe, low-current signal to control a dangerous, high-current circuit. When you flip your cabin switch, it sends a tiny 12-volt trigger signal (usually under 1 amp) to the relay coil. This coil generates a magnetic field, pulling a heavy internal armature closed. The closed armature connects the battery directly to the lighting unit using thick, high-capacity wiring.
The high current never enters the vehicle cabin. It stays safely in the engine bay, isolated from delicate interior components and the driver. This isolation protects your vehicle's factory wiring harness and ensures maximum voltage reaches the lighting unit for optimal brightness.

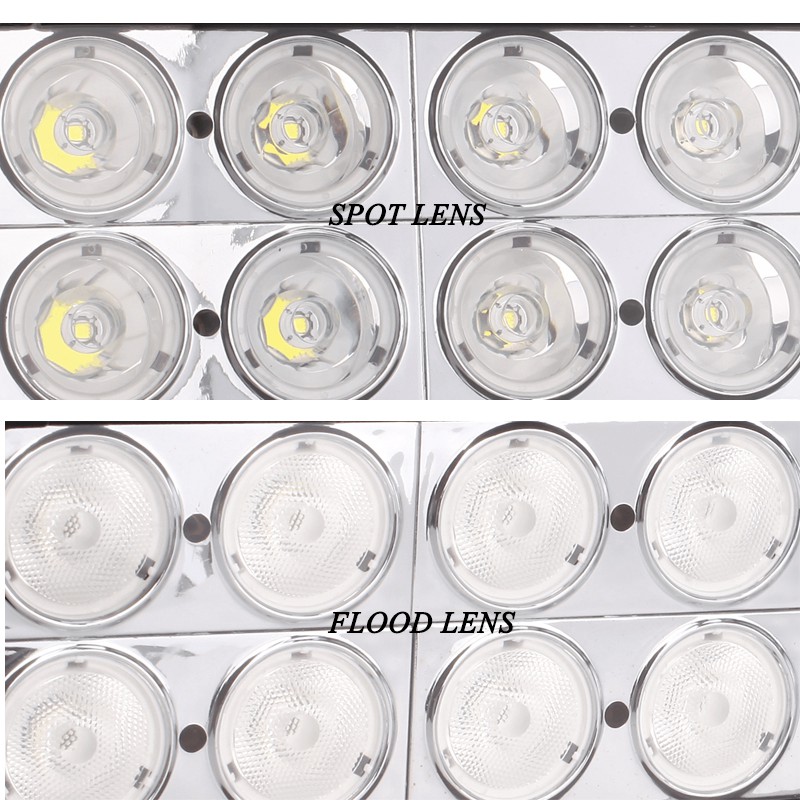

A reliable LED light bar wiring harness consists of several specific components working in unison. Each part plays a specific role in safety and performance. Missing or undersizing any of these components compromises the entire system.
Relays come in different configurations based on circuit complexity. A Single Pole Single Throw (SPST) 4-pin relay represents the industry standard for single lighting units. It features a simple on/off function. A Single Pole Double Throw (SPDT) 5-pin relay adds a secondary output pin (87a). This pin receives power when the relay rests in the off position. Installers use 5-pin relays for dual-function lighting, alternating flashers, or complex switching logic where power must toggle between two different accessories.
The inline fuse acts as the intentional weak link in your electrical system. If a short circuit occurs, the fuse blows instantly, cutting power before the wires can overheat and catch fire. You must place the fuse holder as close to the positive battery terminal as physically possible. Placing the fuse near the relay leaves the wire between the battery and the relay unprotected. If that section chafes against the vehicle frame, it will short out and burn. Always mount the fuse holder within six inches of the battery post.
The low-voltage side of the harness dictates user control. It consists of a trigger wire running to the relay, a ground wire completing the switch circuit, and often an illumination power wire. The illumination wire taps into the vehicle's dash light circuit, allowing the aftermarket switch to glow when you turn on the headlights. This circuit operates entirely on low amperage, allowing the use of thin 18 AWG or 20 AWG wire to easily pass through the vehicle firewall.
Selecting the correct American Wire Gauge (AWG) prevents voltage drop and overheating. Thicker wires have lower AWG numbers. You must calculate the total amperage draw and measure the total length of the wire run. Long runs require thicker wire to maintain voltage. Below is a standard reference table for automotive 12-volt systems.
Total Amperage Draw | 0-10 Feet Wire Run | 10-20 Feet Wire Run | Recommended Fuse Size |
|---|---|---|---|
0 - 10 Amps | 16 AWG | 14 AWG | 15 Amp |
10 - 20 Amps | 14 AWG | 12 AWG | 25 Amp |
20 - 30 Amps | 12 AWG | 10 AWG | 35 Amp |
30 - 40 Amps | 10 AWG | 8 AWG | 50 Amp |
Exposed wiring fails quickly in automotive environments. Standard insulated spade terminals work for interior cabin connections but fail miserably in the engine bay. Moisture, road salt, and vibration destroy unsealed connections. Professional installations demand IP67 or IP68 rated connectors. Deutsch (DT) and Weather Pack connectors feature silicone seals and secure locking mechanisms. They prevent water intrusion, ensuring the connection remains clean and conductive regardless of environmental abuse.
Connector Type | Environment Suitability | Vibration Resistance | Current Capacity (Typical) |
|---|---|---|---|
Standard Spade Terminal | Interior Cabin Only | Low | Up to 15 Amps |
Weather Pack | Engine Bay / Exterior | Medium | Up to 20 Amps |
Deutsch DT Series | Harsh Off-Road / Marine | High | Up to 25 Amps |
Metri-Pack 280 | Heavy Duty Commercial | High | Up to 30 Amps |
Wiring a standard Bosch-style automotive relay requires connecting four specific pins. Memorizing this layout ensures accurate troubleshooting and installation. Each pin serves a dedicated function in separating the high-current load from the low-current trigger.
Pin 30 (Power Input): Connect this pin directly to the positive battery terminal. Route this heavy-gauge wire through your primary inline fuse. This pin supplies the raw amperage required to power the lighting unit.
Pin 87 (Power Output): This pin delivers the high-current output. Connect it directly to the positive lead of your auxiliary lighting unit using heavy-gauge wire. When the relay activates, the internal armature bridges Pin 30 to Pin 87.
Pin 86 (Switch Trigger): This pin receives the 12-volt trigger signal from your cabin switch. When the switch sends power here, it activates the internal electromagnetic coil.
Pin 85 (Ground): Connect this pin to a clean, bare metal chassis ground or directly to the negative battery terminal. It completes the circuit for the internal coil, allowing the magnetic field to form.
Cabin switches vary in complexity depending on illumination features. A basic 3-pin rocker switch requires three connections. Pin 1 receives power from an accessory source. Pin 2 sends that power out to relay Pin 86 as the trigger. Pin 3 connects to ground to illuminate the small LED indicator when the switch activates.
A 5-pin rocker switch enables advanced dash-light integration. It features independent upper and lower LED illumination. Two pins handle the trigger circuit (power in, power out). One pin handles the ground for the LEDs. The remaining two pins handle the illumination circuit. You connect one of these to the vehicle's dash light circuit, allowing the lower half of the switch to glow with the rest of your dashboard instruments. The upper half illuminates only when you activate the accessory.
Many jurisdictions require auxiliary driving lights to activate only in conjunction with factory high beams. To achieve this, you tap into the factory high beam positive wire. You route this tapped signal to your cabin switch, and then to relay Pin 86. The relay will only trigger when the high beams are active and the cabin switch is on. This setup prevents you from accidentally blinding oncoming traffic with off-road lighting.
Modern vehicles utilize CAN bus networks and smart alternators. Tapping directly into a headlight wire on a CAN bus system often triggers dashboard error codes or causes the factory lights to shut down. The computer detects the slight voltage change and assumes a fault. In these vehicles, you must install a dedicated CAN bus high-beam trigger module. This module reads the digital network signal without drawing physical current, providing a safe analog 12-volt output to trigger your relay.
Heavy equipment, commercial trucks, and military vehicles often utilize 24-volt electrical architectures. Configuring a 12V 24V LED light bar system requires careful component evaluation. A light bar rated for 300 watts draws 25 amps on a 12-volt system. However, on a 24-volt system, that same 300-watt light draws only 12.5 amps.
This reduced amperage allows you to use slightly thinner wire gauges for the same wattage. However, you must ensure your relay coil operates at 24 volts. A 12-volt relay installed in a 24-volt system will overheat and burn out the internal coil almost immediately. Always verify the voltage rating stamped on the relay housing before installation. The same rule applies to the cabin switch LEDs; a 12-volt switch LED will pop if exposed to 24-volt accessory power.
Installers must choose between purchasing a pre-assembled harness or building a custom unit from scratch. Each approach offers distinct advantages depending on the project scope, budget, and environmental requirements.
Pre-built harnesses provide exceptional speed of installation. They arrive with relays, fuses, and connectors already crimped and sealed. They offer high cost-effectiveness for standard projects. However, they present certain drawbacks. Manufacturers build them to universal lengths. You often end up with excess wire coiled awkwardly in the engine bay. Furthermore, budget harnesses frequently use standard PVC casing and unsealed relays, making them vulnerable to water damage in extreme environments.
Building a harness from scratch guarantees an exact fitment. You measure every wire run perfectly, eliminating messy coils. Custom builds allow you to select premium materials. You can use marine-grade tinned copper wire, high-temperature braided loom, and fully potted, waterproof relays. The disadvantages include a higher overall material cost and a significant time investment. You also need specialized ratcheting crimping tools to ensure secure terminal connections.
Wiring multiple lights introduces routing challenges. Using a pre-built splitter (Y-cable) allows two lights to share one harness. This works well for low-draw ditch lights. However, for high-draw systems, a single relay might struggle with the combined amperage. A custom harness allows you to use a heavy-duty dual-output relay (utilizing Pin 87 and 87a) or route power through a dedicated, fused distribution block for maximum safety.
Feature | Pre-Built Harness | Custom-Built Harness |
|---|---|---|
Installation Time | 30 - 60 Minutes | 2 - 4 Hours |
Wire Length | Universal (Often requires coiling excess) | Exact Fit (Cut to measure) |
Component Quality | Standard Automotive Grade | Selectable (Marine Grade, TXL wire) |
Tool Requirements | Basic Hand Tools | Ratcheting Crimpers, Heat Gun, Multimeter |
Your decision relies on the application. Recommend pre-built harnesses for standard bumper installations, basic ditch lights, or weekend off-road vehicles. They provide excellent value and save hours of labor. Recommend custom harnesses for roof-mounted bars requiring long wire runs, marine applications exposed to saltwater, or complex overlanding setups. High-end builds often benefit from solid-state power management systems, which replace traditional relays entirely with programmable digital circuits.
Even with high-quality components, installation errors cause system failures. Identifying the root cause of common issues saves hours of frustrating diagnostic work. A systematic approach to electrical troubleshooting prevents unnecessary component replacement.
If your LED light bar flickers or appears dim, you likely suffer from severe voltage drop. This occurs when the wire gauge is too thin for the length of the run or the amperage draw. Poor connections at the battery terminals also restrict current flow. Mitigate this by upgrading to a thicker AWG wire, thoroughly cleaning battery terminals with a wire brush, and verifying your alternator outputs a steady 13.8 to 14.4 volts while the engine runs. Use a multimeter at the final connector to verify voltage matches the battery output.
When you flip the switch and hear the relay click, the low-voltage trigger circuit works perfectly. The failure exists on the high-current side. Begin diagnostics at the battery. Check the inline fuse; it may have blown due to a short. Next, inspect the connections at Pin 30 and Pin 87. Ensure the terminals sit tightly on the relay spades. If power reaches the final connector but the light remains off, the internal circuitry of the lighting unit has failed.
Poor grounds cause erratic electrical behavior. Symptoms include dim lights, intermittent operation over bumps, or a rapidly buzzing relay. Never ground a heavy accessory to a thin piece of sheet metal or a painted surface. You must sand the chassis connection point down to bare, shiny metal. Secure the ground ring terminal tightly with a bolt and star washer. Apply a coat of dielectric grease or protective paint over the connection to prevent rust.
A common installation error involves wiring the cabin switch illumination directly to constant battery power. This leaves the switch LEDs glowing permanently, draining the battery while the vehicle sits parked. To fix this parasitic draw, you must tap the switch power or illumination pin into an ignition-switched fuse. Use an add-a-fuse adapter in the interior fuse box. Select a circuit that only receives power when you turn the key, such as the radio or cigarette lighter circuit.
Green corrosion on relay pins or harness connectors indicates moisture intrusion. Water travels down wire strands through capillary action, destroying copper from the inside out. Prevent this by mounting relays upright on the firewall, ensuring water cannot pool around the terminals. Pack unsealed connectors with dielectric grease to repel moisture. In extremely wet environments, discard standard relays and upgrade to fully potted, solid-state relays that feature zero moving parts and complete epoxy sealing.
A properly configured relay system remains the only acceptable method for installing high-draw auxiliary lighting safely. Bypassing relay logic threatens your vehicle's electrical architecture and risks fire. Matching wire gauge to amperage draw, utilizing appropriately rated fuses, and protecting connections from environmental damage ensures consistent performance in harsh conditions.
Take the following immediate actions to complete your installation:
Calculate your total continuous amperage draw using the Watts divided by Volts formula to determine your baseline load.
Select a relay rated at least 20 percent higher than your calculated continuous draw to establish a safe operating margin.
Map your vehicle's firewall routing paths to identify the most protected entry point for the cabin switch trigger wires.
Strip and sand your chosen chassis ground location down to bare metal to guarantee a zero-resistance electrical connection.
Apply dielectric grease to all exterior connector seals before final assembly to block moisture intrusion and prevent pin corrosion.
A: Determine the required relay size by dividing the light's total wattage by your system voltage (Watts ÷ Volts = Amps). For example, a 300W light on a 12V system draws 25 amps. Select a relay rated 20 to 30 percent higher than the continuous draw to provide a safety margin. A standard 40-amp automotive relay handles this load perfectly.
A: You should never wire high-draw lighting without a relay. Standard cabin switches handle only 3 to 5 amps. Running anything higher directly through the switch causes severe voltage drop, melts the internal switch contacts, and creates a significant risk of an electrical fire behind your dashboard.
A: Place the inline fuse as close to the positive battery terminal as physically possible. The fuse protects the wire, not just the accessory. Placing it near the battery ensures that if the wire chafes and shorts out anywhere along its run, the fuse blows immediately, preventing a fire.
A: A 24V system draws exactly half the amperage of a 12V system for the exact same wattage. This lower amperage potentially allows for thinner wire gauges. However, you must use a specific 24V relay; a 12V relay installed in a 24V system will overheat and fail instantly.
A: The switch remains illuminated because it is wired to constant battery power rather than ignition-switched power. To resolve this parasitic draw, rewire the switch trigger or the dedicated illumination pin to an accessory fuse (like the radio) that only receives power when the key is turned on.
A: A 300W light bar draws approximately 25 amps on a 12V system. For a standard wire run under 10 feet, use 12 AWG wire. If you need to route the wire further, such as to a roof rack (10 to 20 feet), upgrade to 10 AWG wire to prevent voltage drop.
A: Yes, you can wire two lights to one harness if the combined amperage of both lights does not exceed the capacity of the relay, the inline fuse, and the wire gauge. Installers typically achieve this using a Y-splitter cable or by utilizing a dual-output relay.
